Takex MS-12FE Dual-Zone 12m x 180 Degrees
Original price was: R2899,00.R2559,00Current price is: R2559,00.
The Takex MS-12FE Dual-Zone 12m x 180° PIR is a high-performance outdoor passive infrared (PIR) motion detector designed for advanced perimeter security applications. It uses a unique dual-zone detection system that helps significantly reduce false alarms caused by pets, small animals, or environmental movement.
It is commonly used in residential estates, commercial properties, warehouses, and high-security perimeters where reliable early intrusion detection is required.
Key Features

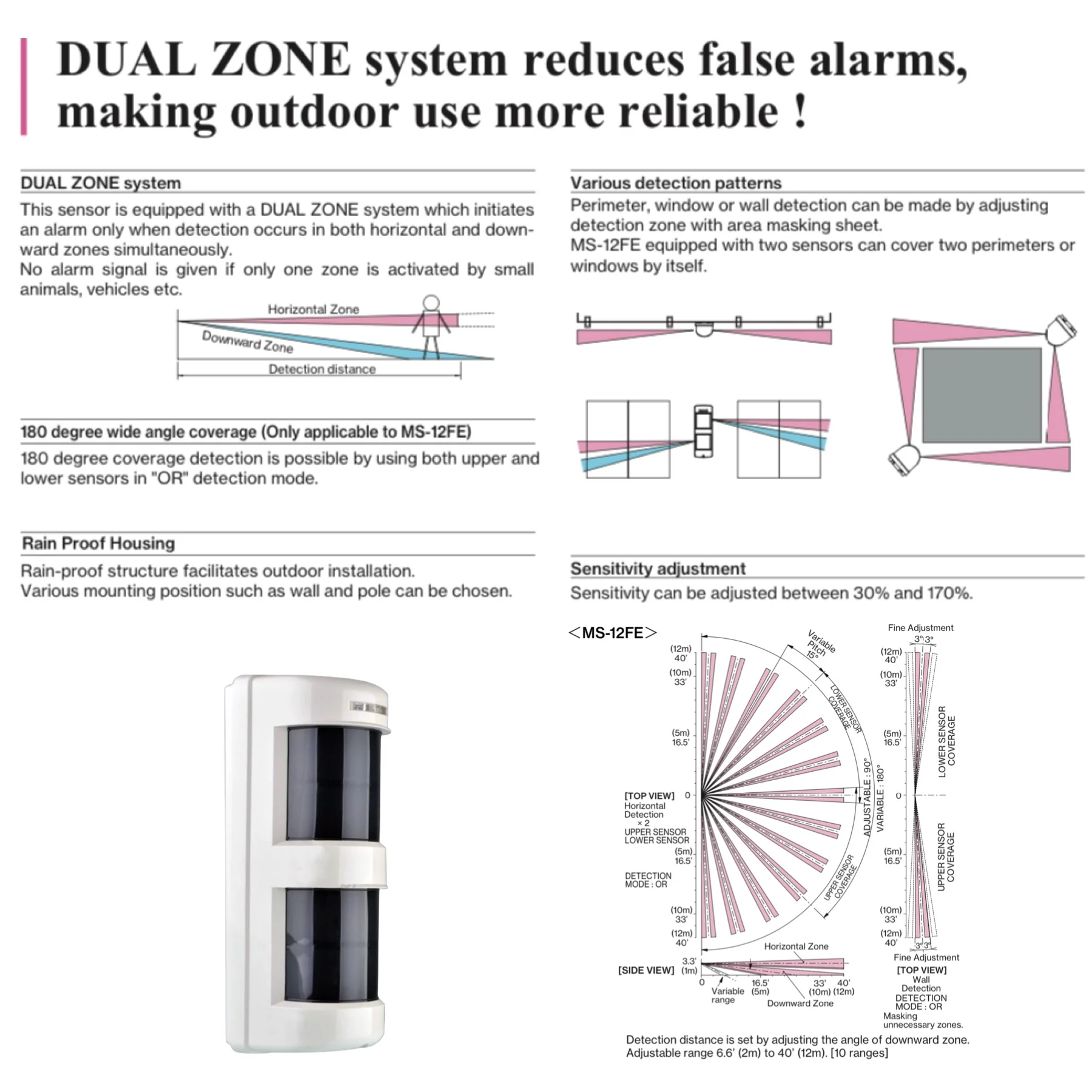

- Dual-zone detection technology (horizontal + downward sensing zones)
- Requires simultaneous detection in both zones to trigger an alarm (reduces false alarms)
- 180° wide-angle coverage up to 12m range
- Pet-friendly design to ignore small animals and reduce nuisance triggers
- Adjustable left/right and horizontal detection angles (±90° rotation)
- Selectable NO/NC relay output for flexible alarm integration
- AND / OR detection modes for customised sensitivity setups
- IP54 weather-resistant housing for outdoor installation
- Adjustable sensitivity and pulse count settings
- Day/night sensing control for smarter activation
- Suitable for wall or pole mounting (0.8m – 1.2m height)
Technical Specifications
| Specification | Details |
|---|---|
| Detection Type | Dual-zone PIR (Passive Infrared) |
| Coverage | Up to 12m × 180° |
| Zones | Horizontal + downward dual sensing |
| Mounting Height | 0.8m – 1.2m |
| Power Supply | 12–30V DC |
| Current Consumption | ~40mA max |
| Output | NO/NC relay (dry contact) |
| Weather Rating | IP54 |
| Operating Temp | -20°C to +50°C |
